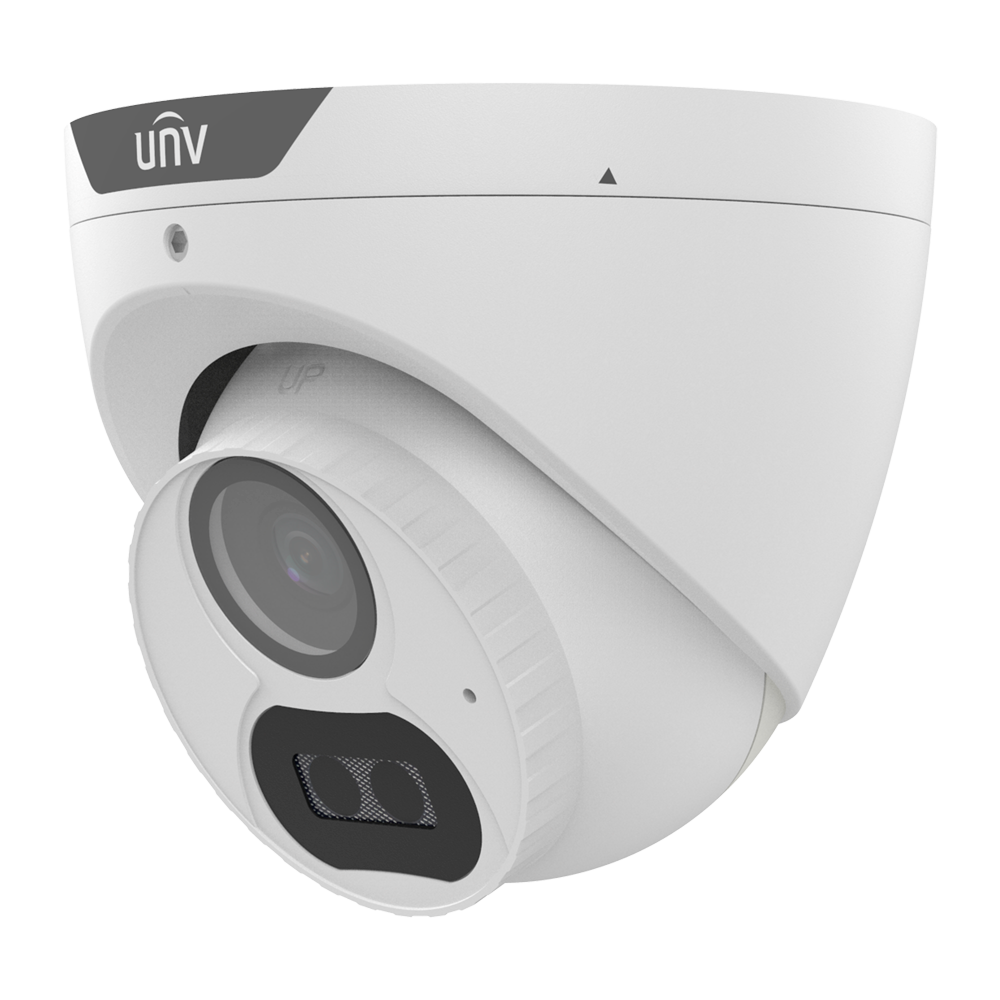

UV-UAC-T122-AF28LM
Cámara Turret 2 Megapíxel (1920x1080) - Gama Easy - 1/2.9" Progressive Scan CMOS - Lente 2.8 mm | LightHunter - Smart IR alcance 40 m - IP67 | Micrófono integrado
- Uniview
- Cámara Mini Turret HDTVI, HDCVI, AHD y CVBS
- 1/2.9" Progressive Scan CMOS
- 2 Megapíxel (1920x1080)
- Salida 4 en 1
- Lente 2.8 mm
- 0.005 Lux
- IR alcance 40 m
- LightHunter
- Micrófono integrado
- 3D-DNR
- Impermeable IP67
| Gama | Uniview |
| Sensor de imagen | 1/2.9” Progressive Scan CMOS |
| Resolución máxima | 2 MPx (1920x1080) |
| Resolución | TVI: 1080p (25~30 fps), 720p (25~30 fps) CVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Lente | 2.8 mm |
| Ángulo de visión (FOV) | 101.5° (H), 56.9° (V), 117.4° (D) |
| Iluminación mínima | 0.005 Lux @(F1.6, AGC ON) 0 lux con IR |
| Iluminación infrarroja | 0 Lux / Smart IR alcance 40 m |
| Día / Noche | Auto (por defecto), Día, Noche |
| Invertir imagen (Flip) | Admite giro horizontal de 180º y giro vertical de 180º |
| Mejoras de imagen | BLC, HLC, DWDR, DAY/NIGHT MODE, 3D-DNR, Smart IR |
| Salida de vídeo | BNC, soporta HDTVI, HDCVI, AHD y CVBS |
| Audio | Micrófono integrado |
| Interface | 5.5 mm |
| Alimentación | DC 12 V / 3.2 W |
| Protección contra sobretensiones | 4 KV |
| Temp. funcionamiento | -30º C ~ 60º C |
| Grado de protección | Impermeable IP67 |
| Material | Metal y plástico |
| Dimensiones | 111mm (Φ) * 98mm (H) |
| Peso | 334 g |
- Cámara Analógica UNIVIEW
- Material de instalación
- Instrucciones de uso
